MMS3424 Server Chassis Specifications

Chassis Model

MMS3424

Dimensions & Material

438 mm × 177 mm × 660 mm
Material: SGCC Galvanized Steel from China Steel Corporation (CSC), Taiwan

Front Panel

• POWER switch

• RESET button

• Power / HDD / Network / Alarm / Status indicator LEDs

Storage Support

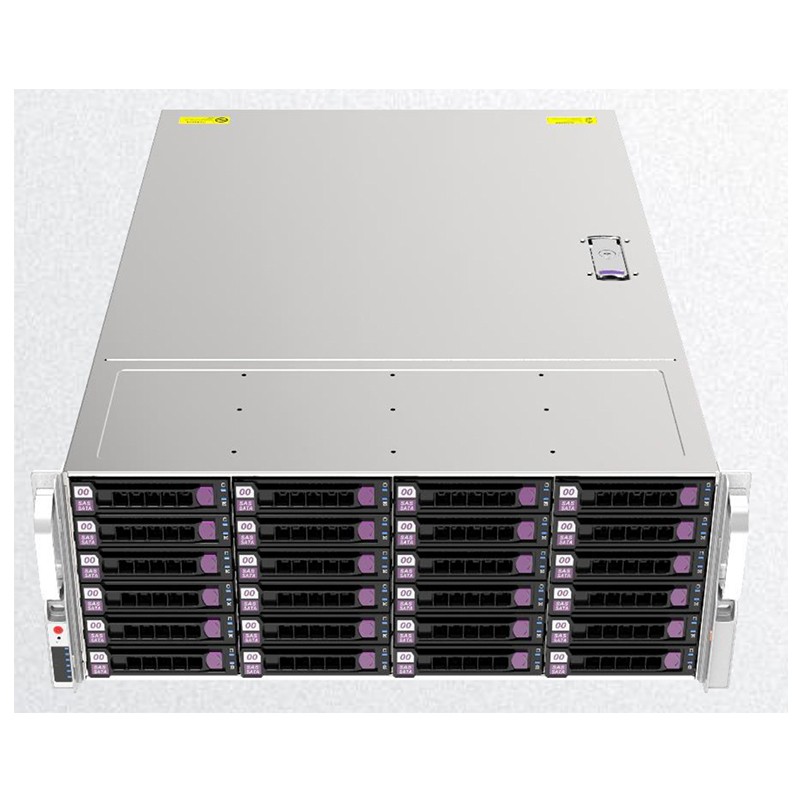

• Front: Supports 24 × 3.5" hot-swappable drive bays, compatible with 2.5" drives

• Rear: Supports 2 × 2.5" internal HDDs

• Supports 2 × 2.5" NVMe hot-swappable OS modules (Optional)

PCIe Expansion

• Supports 7 × full-height PCIe expansion slots

System Cooling Fans

• Overall vibration-damping design

• Standard configuration: 4 × 8038 hot-swappable system cooling fan modules

• Silent version / PWM control

• High-quality fans with a rated service life of 50,000 hours

• Rear internal: Supports 2 × 8038 hot-swappable fan modules (Optional)

Backplane

• Supports 24 × SAS/SATA 12 Gbps expansion backplane

• Supports 2 × 12 × SAS/SATA 12 Gbps direct-attached backplanes

Power Supply

Redundant Power Supply:

• 550W / 800W / 1300W / 1600W

• 80 PLUS Platinum-rated CRPS 1+1 high-efficiency redundant power supply

Single Power Supply:

• 600W 80 PLUS high-efficiency single power supply

• Single PSU mounting bracket available as an option

Motherboard Compatibility

Supports standard:

• EEB (12" × 13")

• CEB (12" × 10.5")

• ATX (12" × 9.5")

• Micro ATX

Environmental Specifications

Operating Temperature:
10°C to 35°C

Operating Humidity:
8%–90% RH, non-condensing

Storage Temperature:
-40°C to 70°C

Storage Humidity:
5%–95% RH, non-condensing

Optional Configurations

Hot-Swappable HDD Backplane

• 24 × SAS/SATA 12 Gbps expansion backplane

• 2 × 12 × SAS/SATA 12 Gbps direct-attached backplanes

Single / Redundant Power Supply

1+1 Redundant Power Supply:
550W / 800W / 1300W / 1600W original power supplies, 80 PLUS Platinum-rated (Optional)

2 × 2.5" HDD / OS Module

• 2 × 2.5" hot-swappable drive bays

• Optional configurations:

• SATA direct-attached backplane + NVMe backplane

• Built-in 2 × 2.5" HDD mounting brackets

Rear Fan Module

• 2 × 8038 hot-swappable fan modules

• Silent version / PWM control

• High-quality fans with a rated service life of 50,000 hours

HDD Data Cables

• Customized cable lengths available according to customer requirements

Power Cable

• High-quality dedicated server power cable

• 3C certified

Chassis Front Panel

• Supports 4U front panel customization

Rack Rails

1. 2U support-type rack rails

2. 2U tool-less quick-release ball-bearing full-extension rails

Customer Customization

• Customer logo customization

• Drive tray color customization

• OEM packaging

• ODM customization of chassis appearance and structure

• Other customized solutions available upon request
